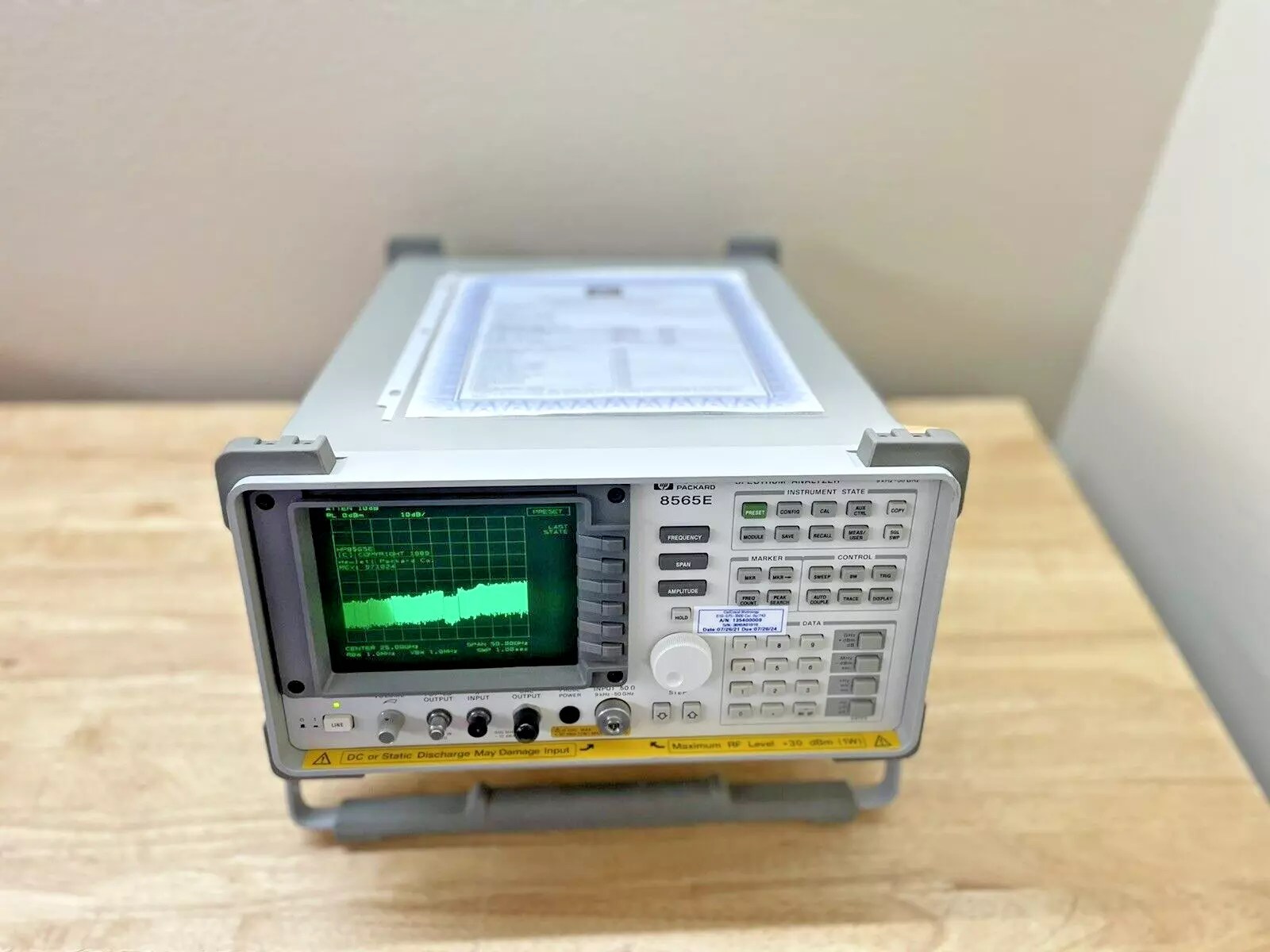

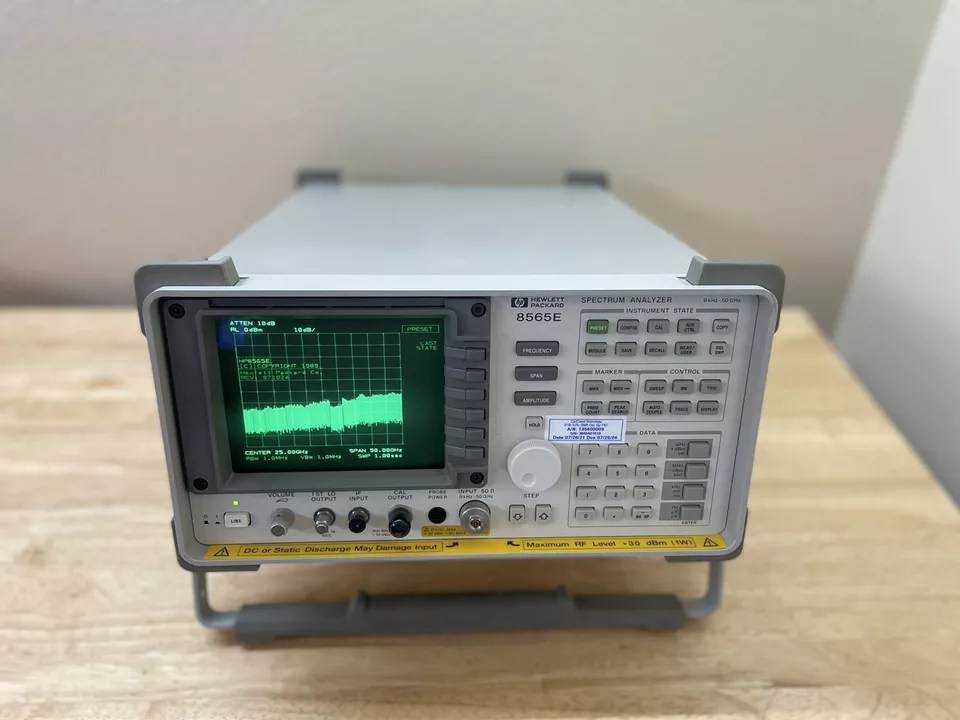

HP/ Agilent 8565E 9 kHz – 50 GHz Spectrum Analyzer
Excellent refurbished unit! full 50 GHz box no need of external mixing
Ready to get to work making repeatable measurements
We specialize in these units & have thoroughly refurbished this unit.
This unit has low hours. The CRT is excellent. – we can retrofit an LCD kit for additional cost
The Yig tuned oscillator, the RYTHM, the power supply, & the A15 synthesizer, all rebuilt/ refurbished !
Fresh NIST traceable calibration was run 2023 Valid for 2 years

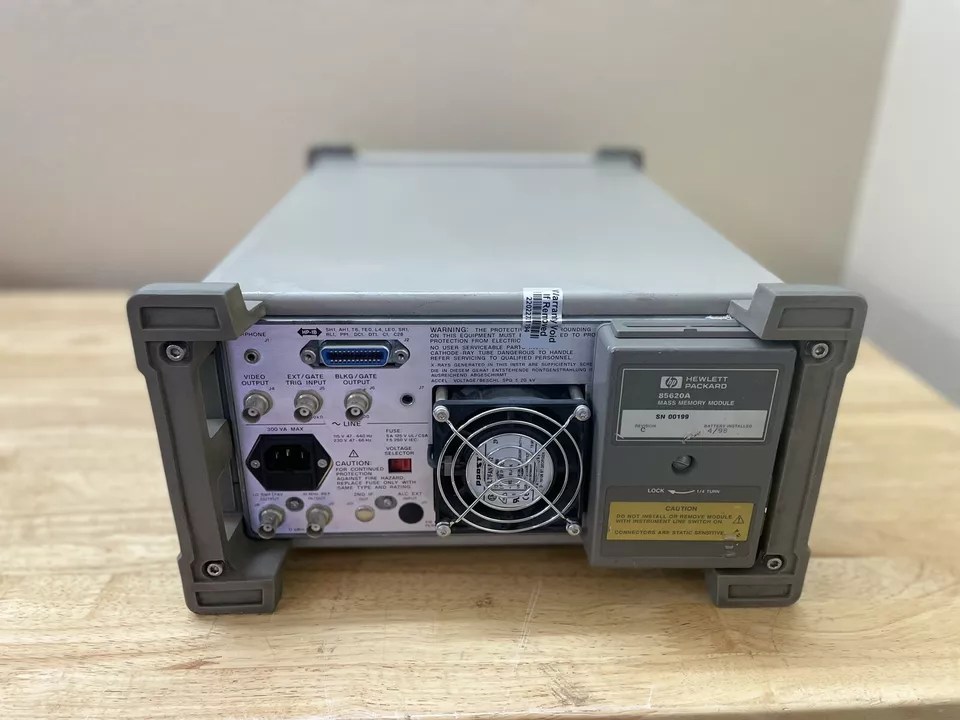

Includes 85620A Mass memory module with phase noise measurement software- full version- not the demo version
90 day warranty- 1 year for additional cost
No Options are currently installed
We can add 001 005 006 007 008 for additional cost
001 2nd if output +$100
005 Alternate sweep output +$100
006 Frequency extension down to 30 Hz +$250
007 Fast zero span +$250
008 Signal ID +$800
The HP/Agilent/Keysight 8565E portable millimeter spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. Continuous 9 kHz (30 Hz opt 006) to 50 GHz sweep without the need for external mixers You can measure signals from 30 Hz to 50 GHz (preselected above 2.75 GHz) with a single coaxial connection.
The 8565E combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a MIL-rugged package built to withstand harsh environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.
Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
Precision timebase and 1 Hz counter resolution
MIL-T-28800 rugged
Available for monthly Rental send a message if you’re interested

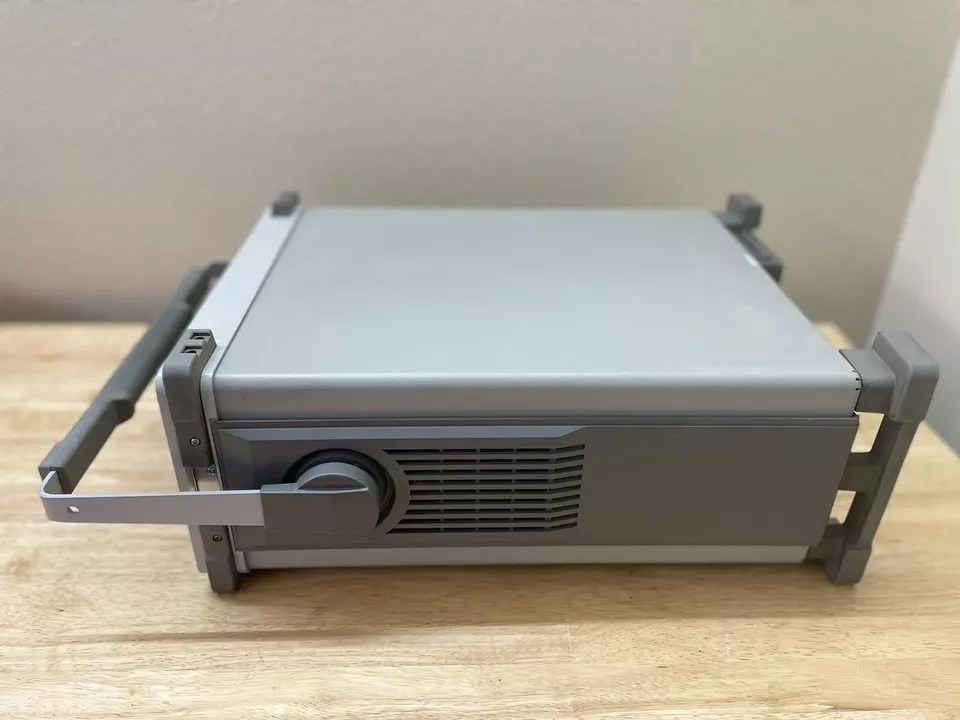

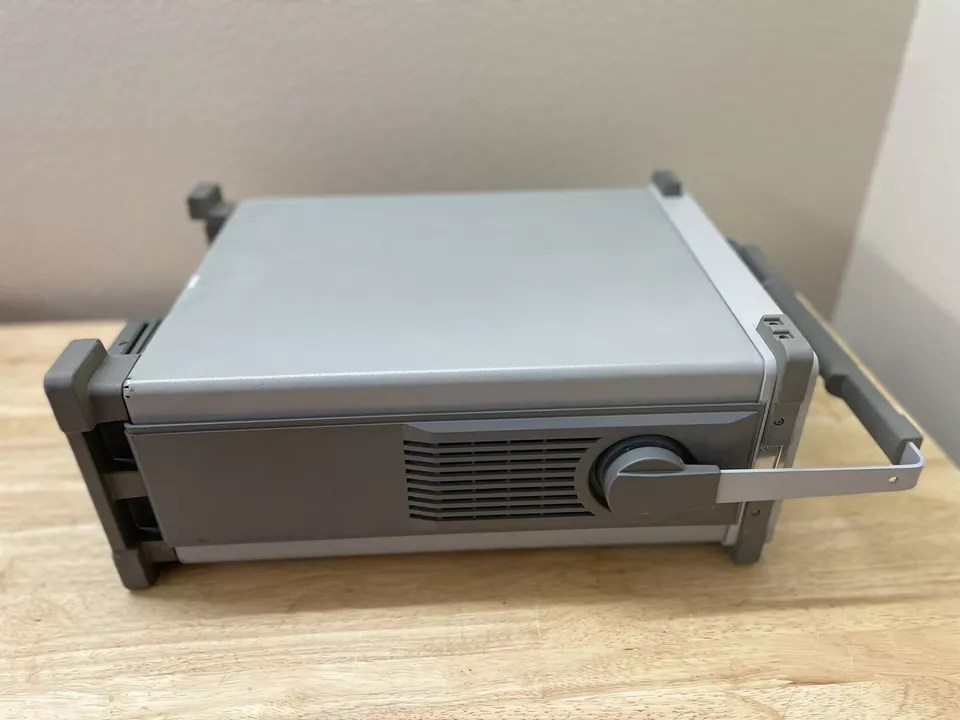

Stock photos, actual unit guaranteed to be in similar refurbished condition. Please send a message and we can send photos of the actual unit
thanks for looking!
