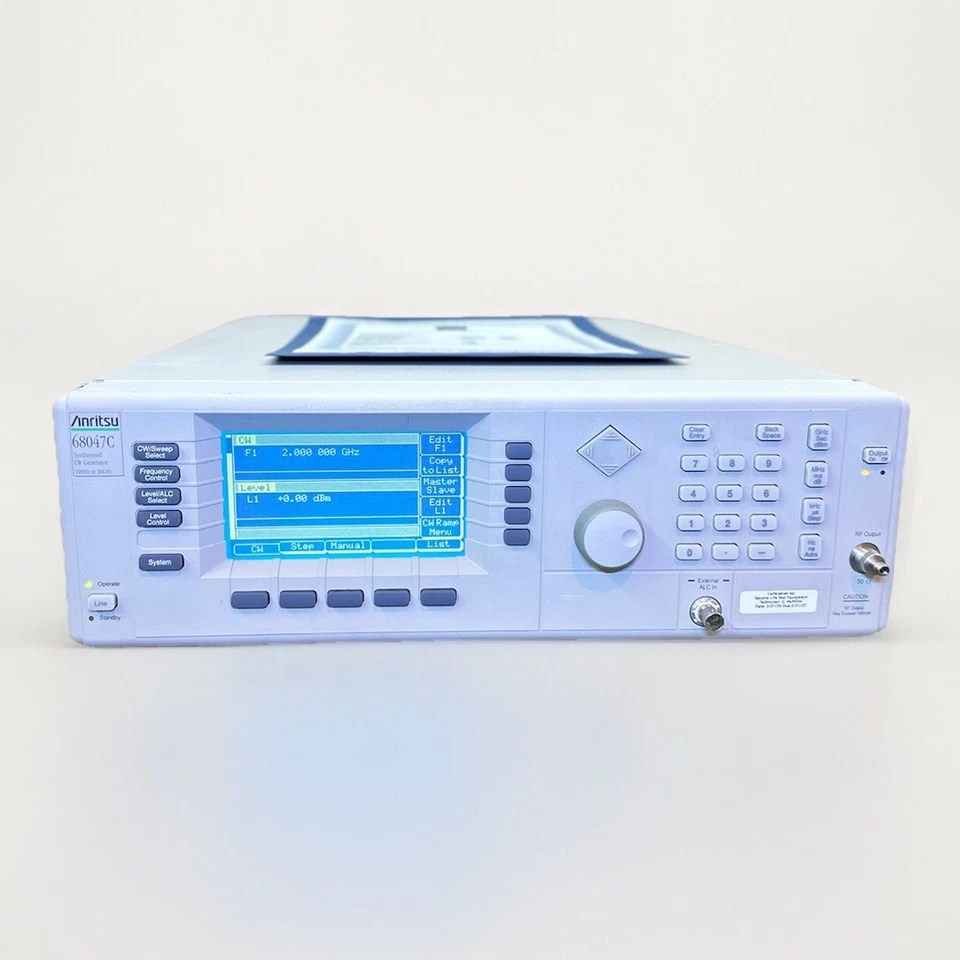

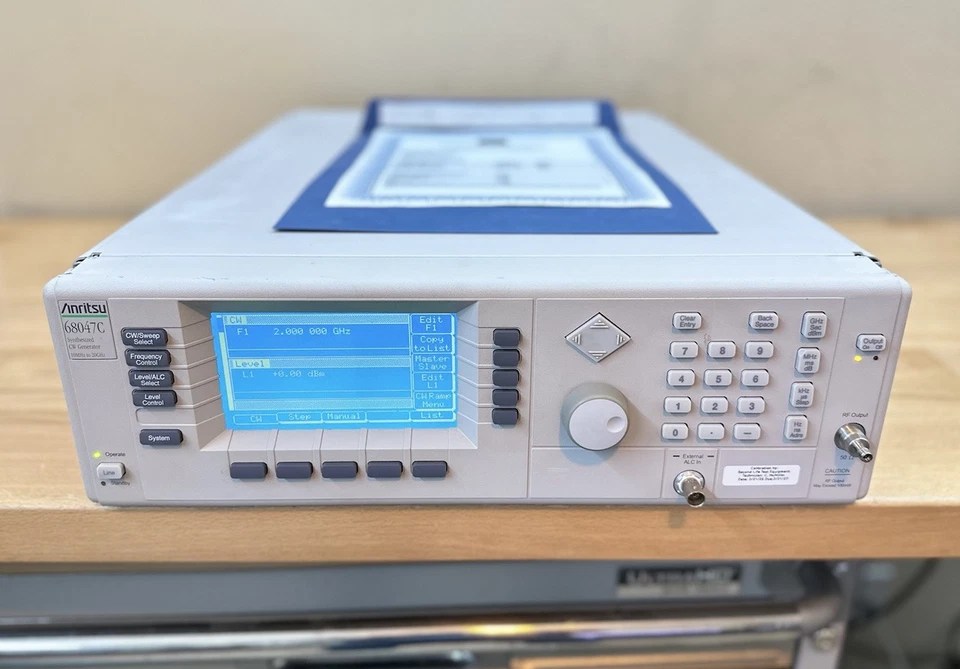

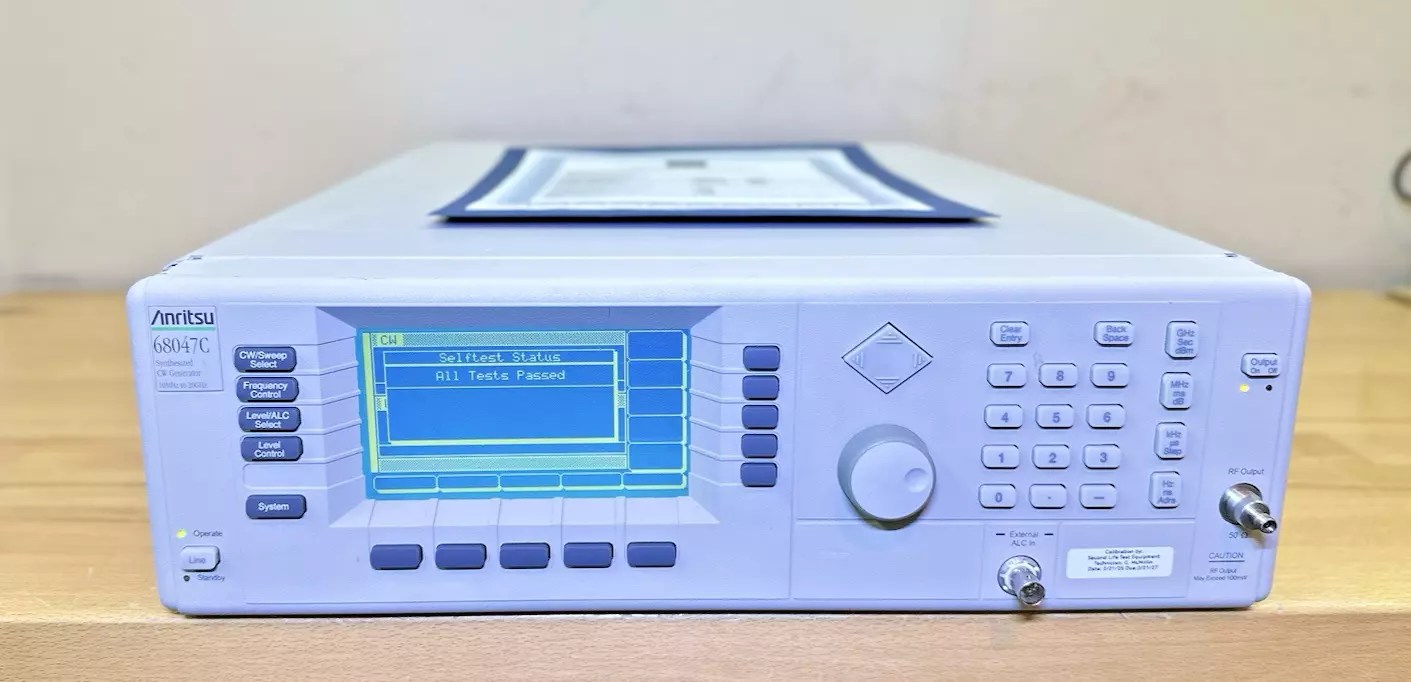

Anritsu 68047C 10 MHz to 20 GHz Signal Generator
Calibrated Feb 2025
New LCD installed
The Anritsu 68047C Synthesized CW Generators are microprocessor-based, synthesized signal sources with high resolution phase-lock capability. The 68047C generates both discrete CW frequencies and broad (full range) and narrow band step sweeps across the frequency range of 10 MHz to 20 GHz. All functions of the CW generator are fully controllable locally from the front panel or remotely (except for power on/standby) via the IEEE-488 General Purpose Interface Bus (GPIB).
Additional Features:
Frequency Range: 0.01 to 20 GHz
Output Power Without An Attenuator: –15 dBm (–20 dBm typical)
Output Power With An Attenuator: –120 dBm
Output Power With An Electronic Attenuator: –140 dBm
Ultra-low SSB phase noise and spurious

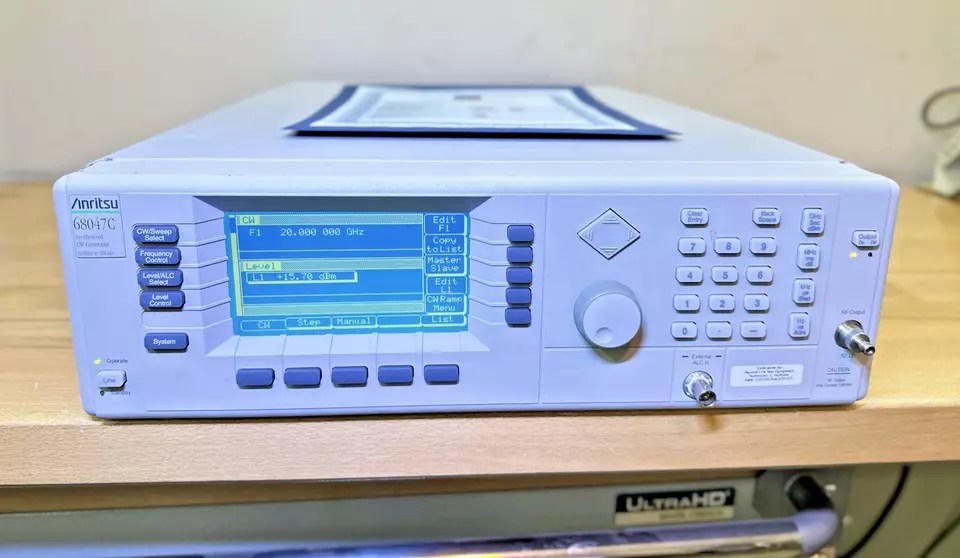

+11 dBm guaranteed leveled power to 20 GHz, This unit generates over +15 dBm
<5 ms switching time for <100 MHz sweep steps
Digital frequency sweep and digital power sweep
Wide dynamic range with accurate output levels
Intuitive, menu-driven front panel
