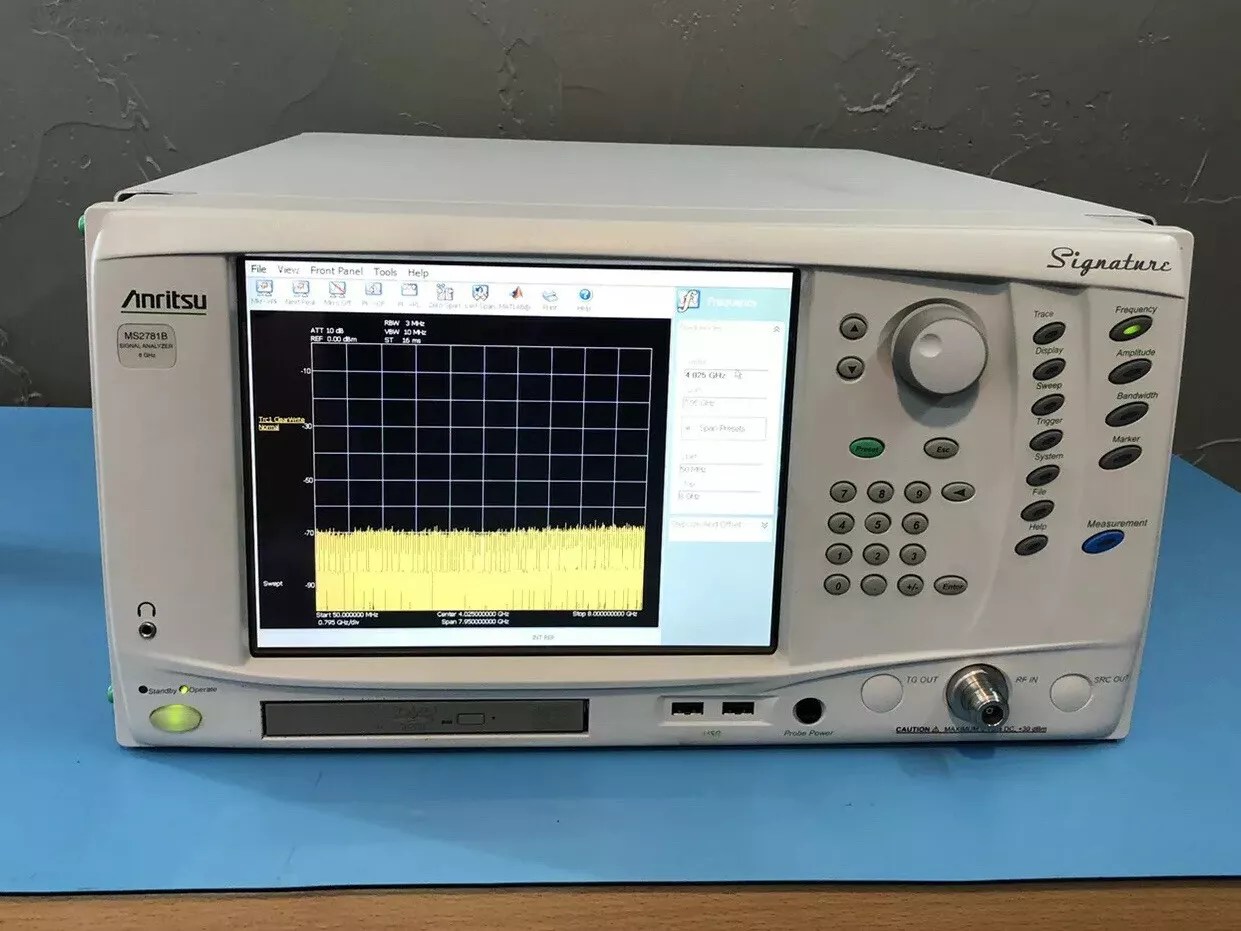

Anritsu Signature MS2781B
High Performance Signal Analyzer 100 Hz to 8 GHz
Signature brings performance signal analyzers to a new plateau. No other signal analyzer matches the spectrum analysis performance of Signature’s unique architecture. Simulation and analysis tools such as MATLAB® and Simulink® operate seamlessly with analyzer measurements in the first open Windows environment for a signal analyzer. Built-in “Smart” measurements and personalities for Phase Noise, WiMAX, WCDMA/HSDPA/HSUPA, and QAM/PSK Modulation Analysis ease measurements on complex signals. Engineers can now easily move between simulation, measurement and analysis to support development of new or proprietary communication systems.

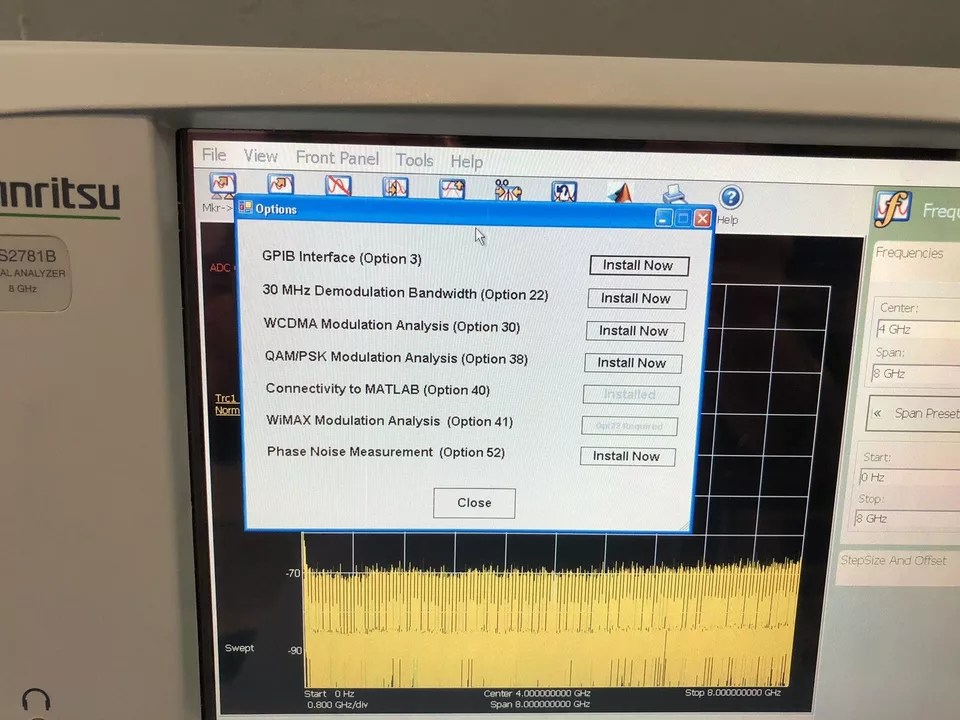

This unit has option 40= Connectivity to MATLAB
This unit cost over $50,000.00 New (late 2000s)
Base price: $49,500; IEEE 488 interface option, $600; MATLAB connectivity option, $1,000
Features:
Fundamentally mixed, single band architecture covers 100 Hz to 8 GHz.
Capture and analyze complex modulated signals with up to 50 MHz bandwidth.
Use the touch-screen display to perform “smart” measurements by pressing a single button on the front panel.
Access any function in the intuitive Windows XP Professional environment.
Specifications:
Frequency
Frequency Range: 100 Hz to 8 GHz
Resolution Bandwidths: 0.1 Hz to 8 MHz
1 GHz Phase Noise <–116 dBc/Hz at 100 kH, 142 dBc/Hz at 5 MHz
Amplitude
Amplitude Accuracy: <0.65 dB over 100 Hz to 8 GHz
TOI: >+22 dBm
DANL: <–167 dBm at 1 GHz (0.1 Hz RBW)
Dimensions
Length: 20.0″
Width: 17.0″
Height: 9.5″
Weight: 62 lbs
Shipping Weight: 75 lbs
LCD Display 26.6 cm (10.4 inches)
Interface: touch screen
Visibility: Back-lighting
Type: XGA Color
Size 10.4″
Power Requirements
AC: 85-264 VAC, 47-63 Hz Power
Consumption: Operating: 400 VA Standby: 30 VA
Memory: External USB 3 slots, CD R/W + DVD-ROM
Communications: Type: Ethernet: 10BASE-T, 100BASE-TX, 1000BASE-T

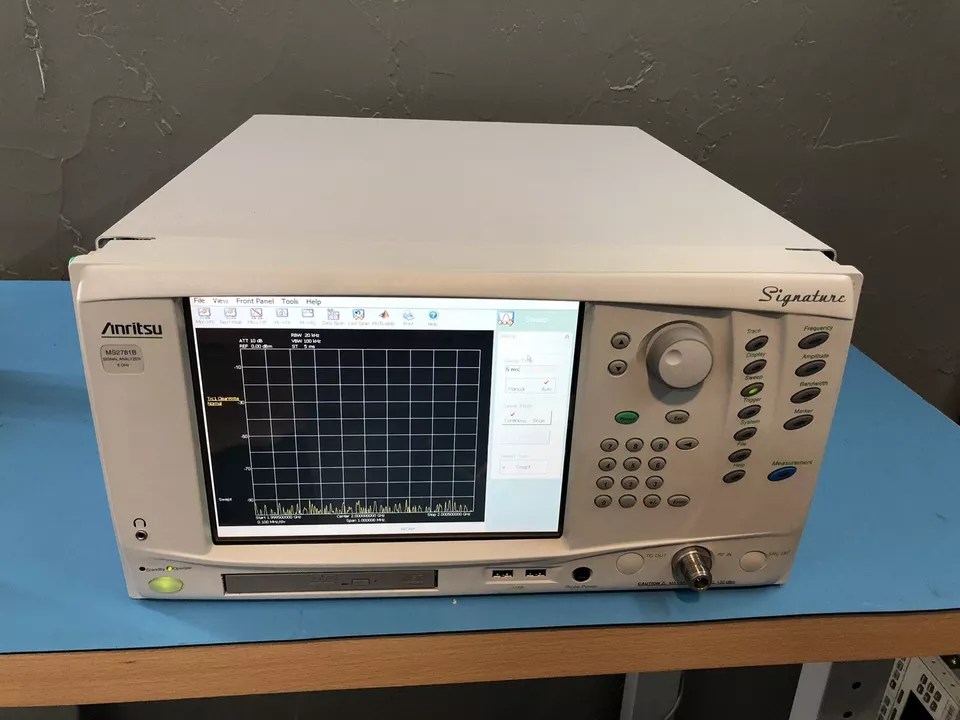

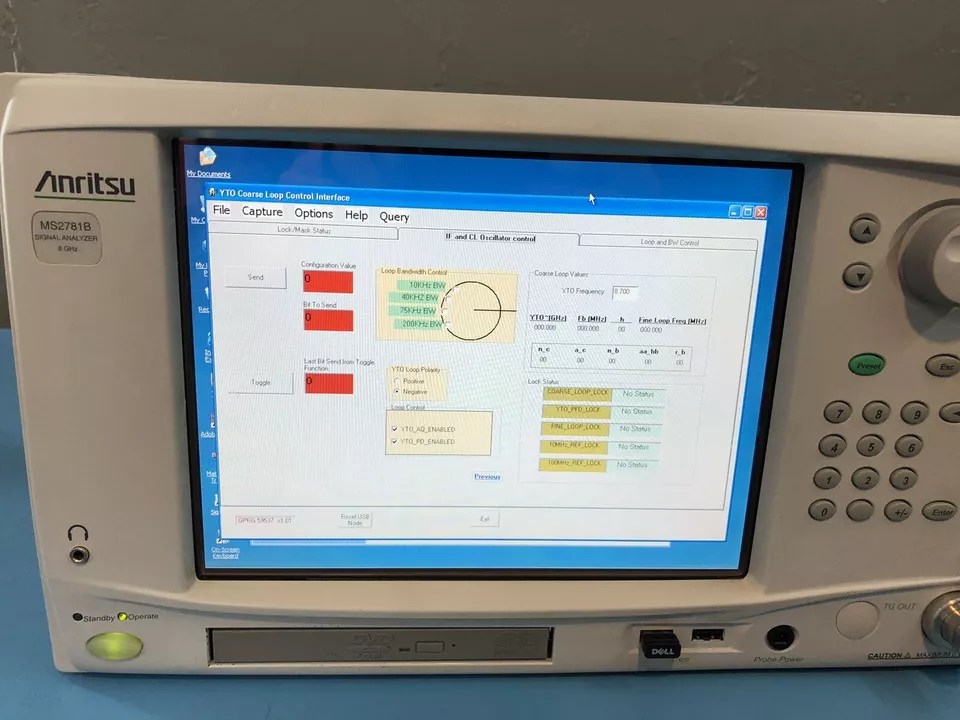

The unit is in great physical condition. The case has some minor scuffs. The touch screen display is Phenomenal! Crisp Bright, works great! You can also connect USB keyboard & mouse if you prefer.

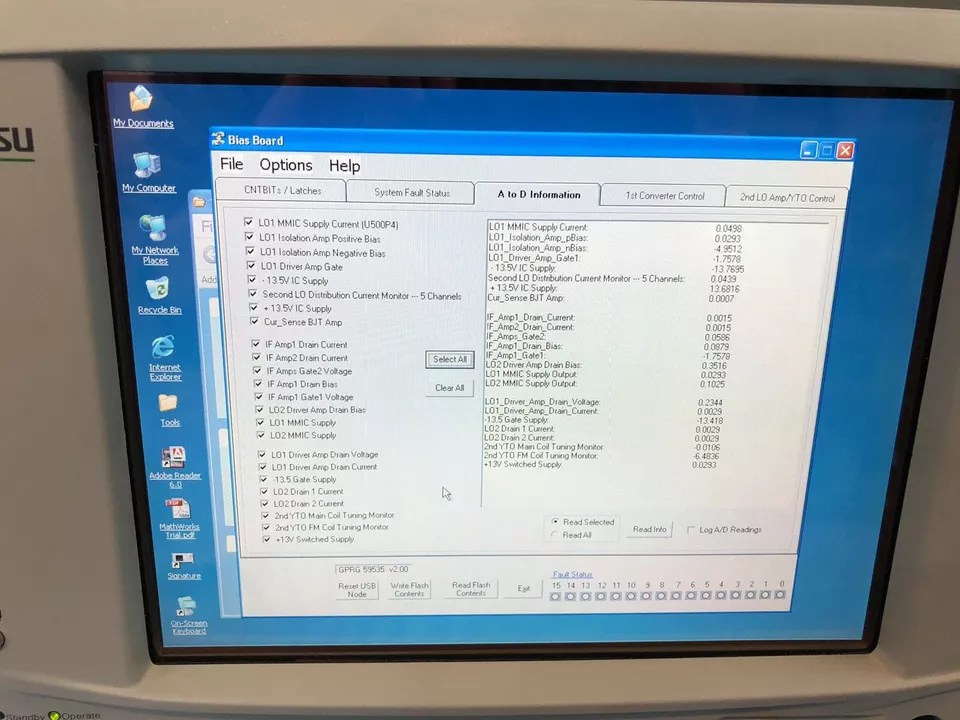

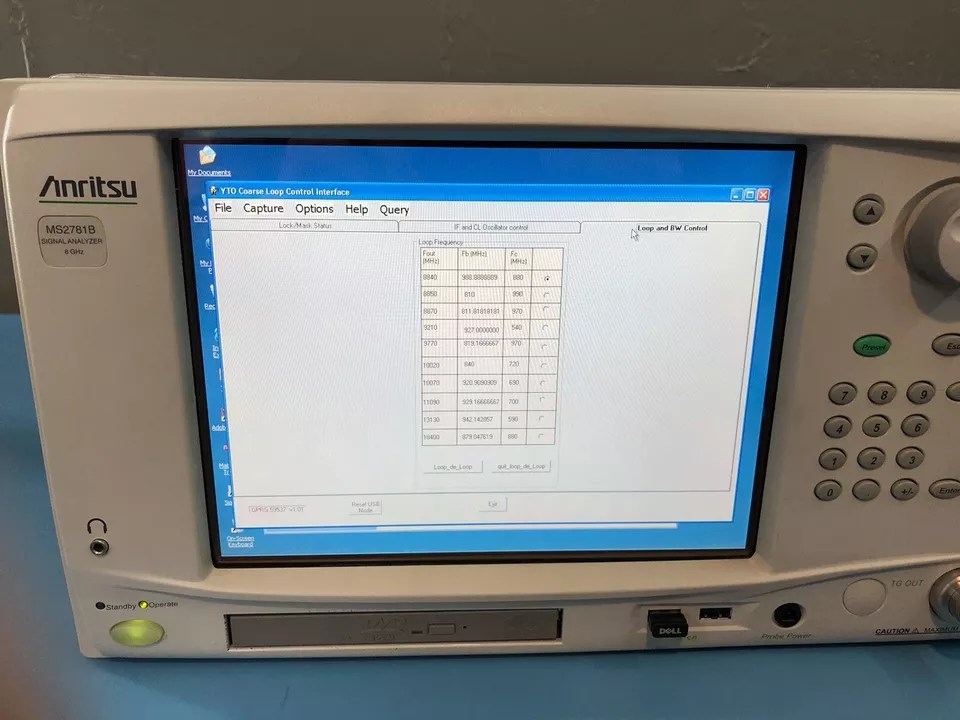

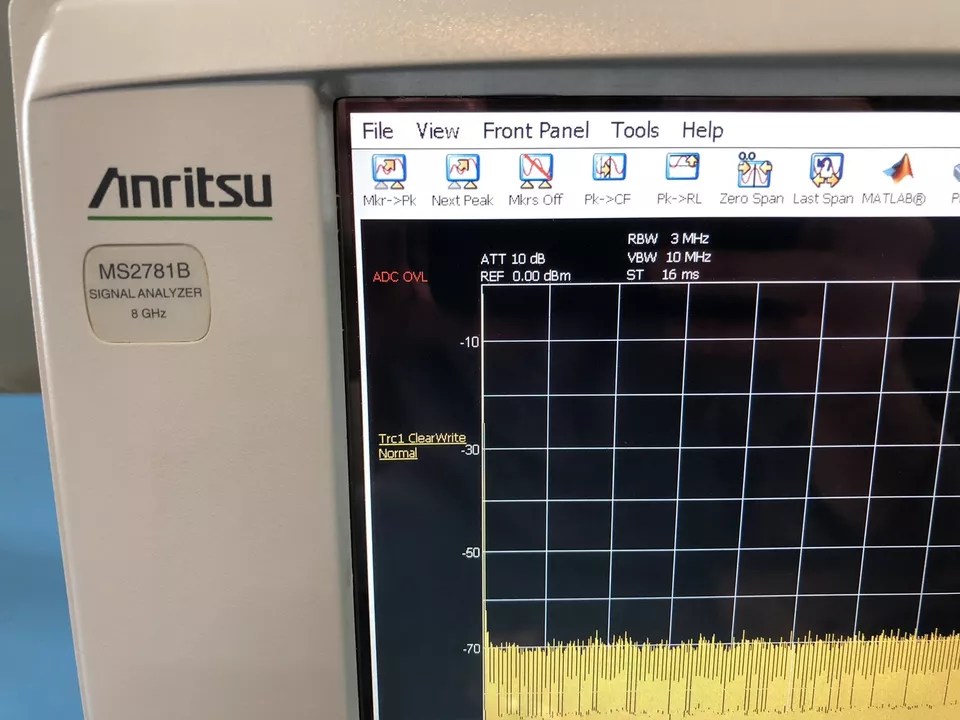

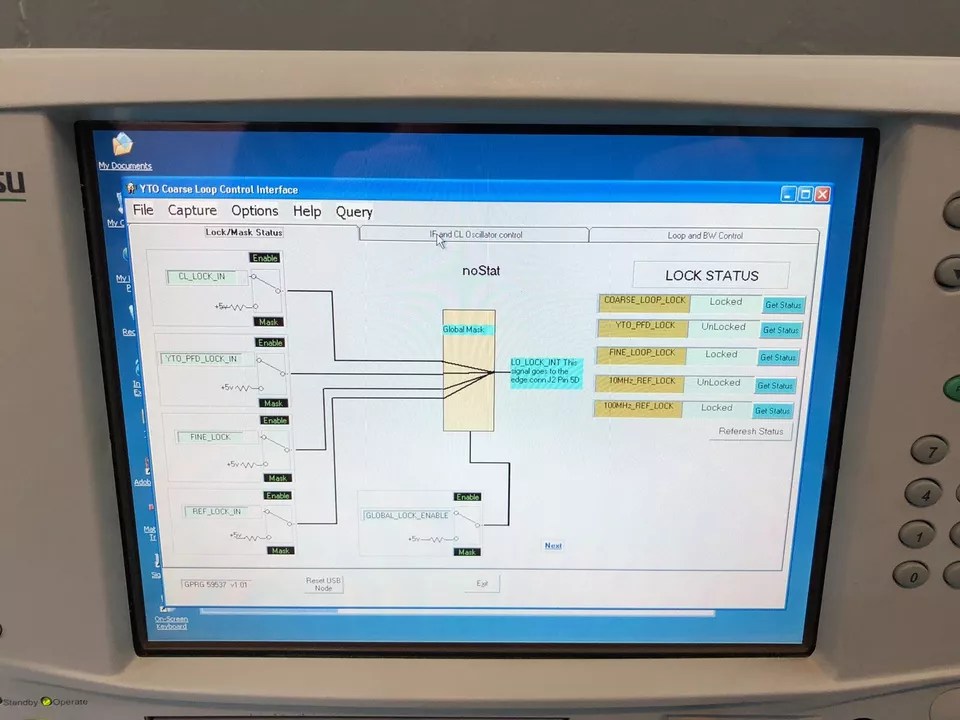

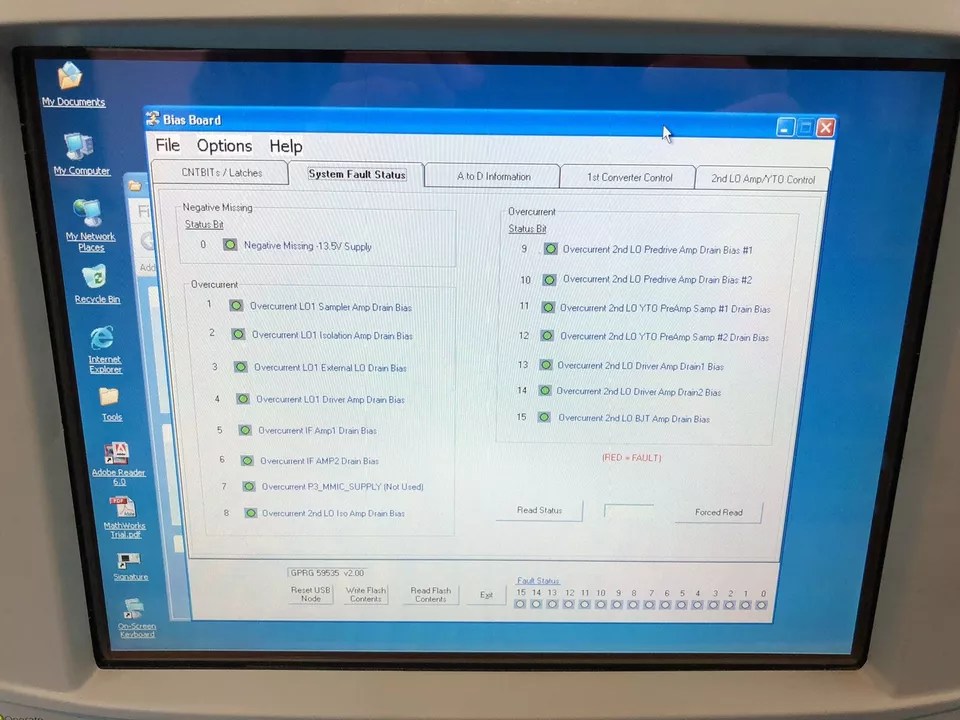

The unit measures signals but the amplitude is not accurate. It measures too low. The unit is phase locked and signal looks normal, but it’s just low. The unit also occasionally gives ADC overflow message but still functions perfectly, we are selling for parts/ repair AS IS
Local pickup available
Alta Loma California 91701
