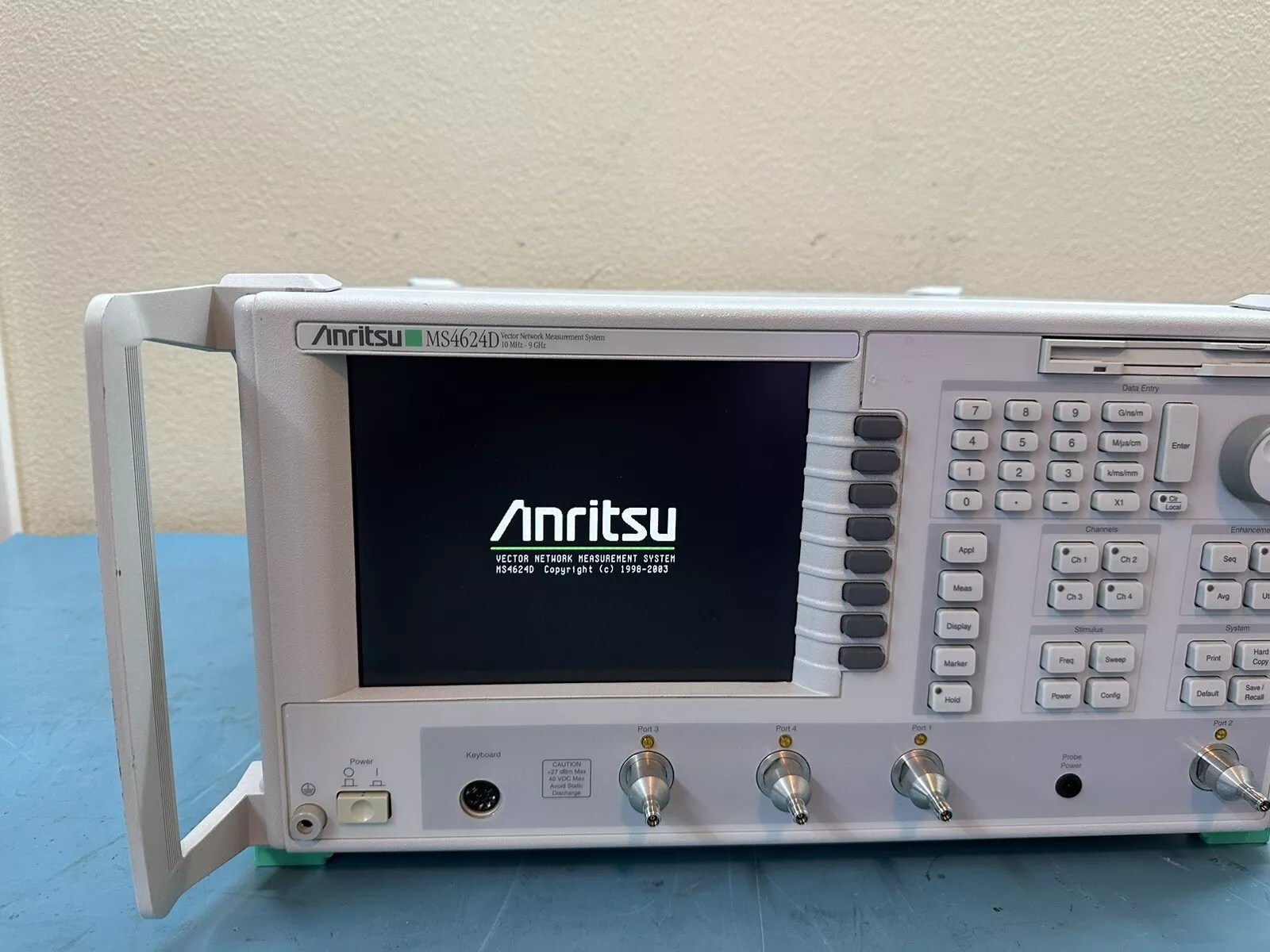

Anritsu MS4624D 10 MHz – 9 GHz 4 Port Vector Network Analyzer
Options 2 ,11SF, 99
2 = Time Domain
11SF = 4 port 3.5 mm SMA connectors
99 = not listed in the datasheet
99 = not listed in the datasheet
Needs calibration possible repair

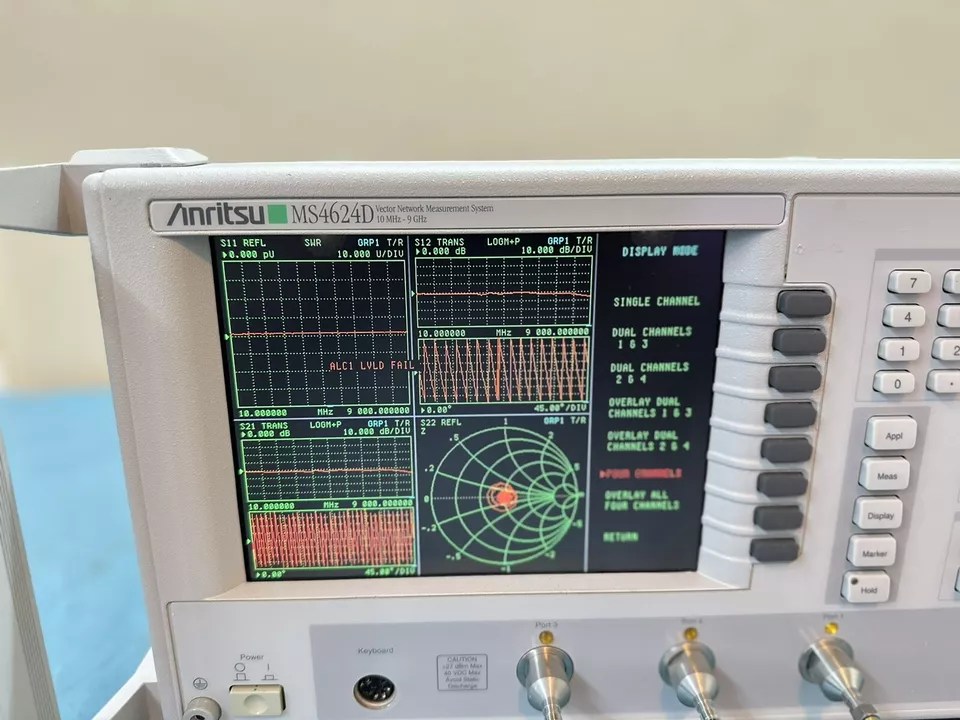

ALC1 LVLD FAIL message shown.
When power meter is applied to the output of source, it reads 12 dBm to 16 dBm high
Originally the unit would not boot. We already went through the Bram restoration and were able to get it to fully boot up.
Service manual suggests it needs full ALC calibration
The unit responds to S11 S22 S12 S21 VSWR transmission/ reflection tests. The attenuator appear to be functional as well.
If there is a specific test you would like us to run, let us know
thank you
Anritsu MS4624D a member of the Scorpion Vector Network Measurement System (VNMS) family, the MS462xD adds 4-port balanced/differential measurement features to the already versatile measurement portfolio. In comparison, the pioneering MS462xB provides similar performance and functionality for 2-port and 3-port applications. Available in the frequency ranges of 10 MHz to 9 GHz (or 3 or 6 GHz), these powerful and versatile models provides accurate measurements for most wireless components including surface acoustic wave (SAW) filters, amplifiers, and mixers.
