Description

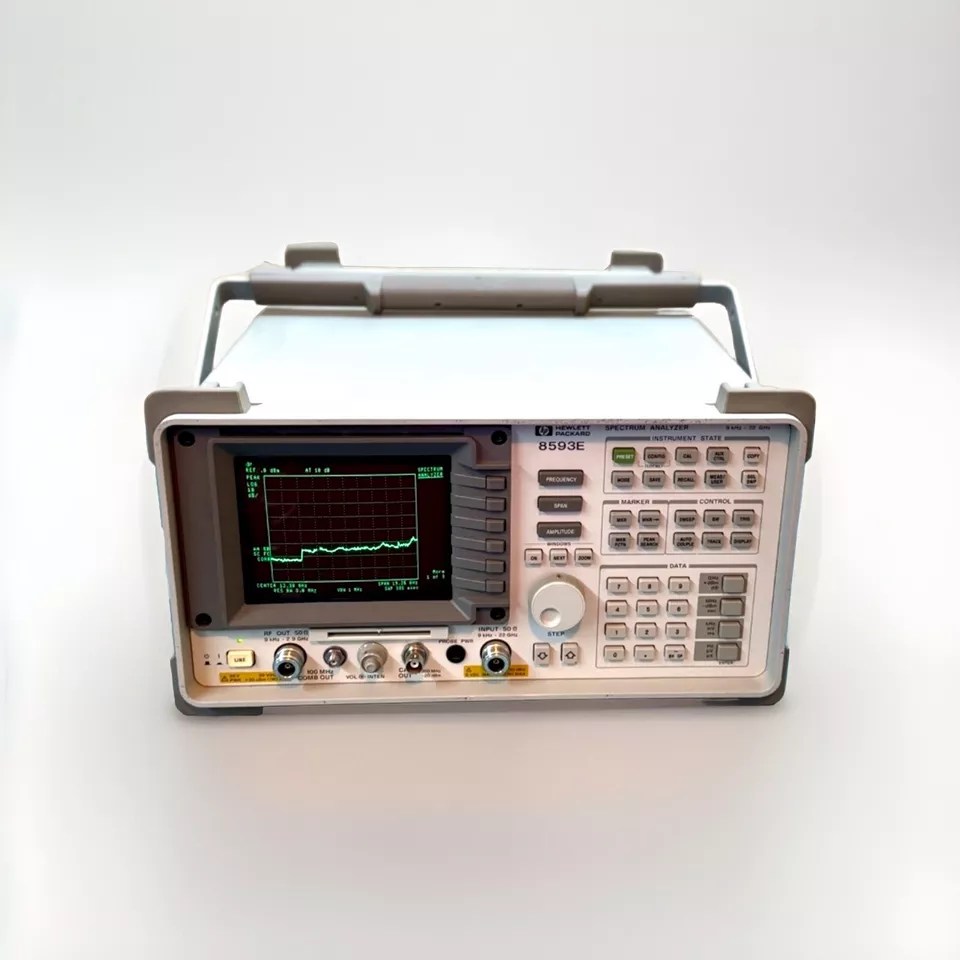

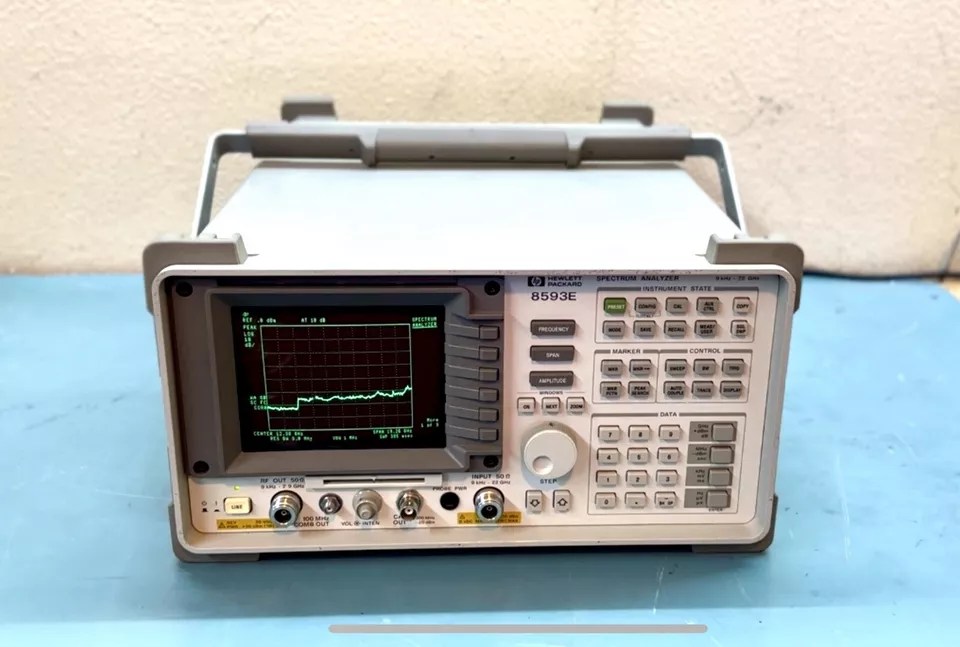

HP 8593E Spectrum Analyzer 9 kHz -22 GHz
Recently refurbished & calibrated (includes certificate valid until 2027)
Loaded with options, currently maxed out

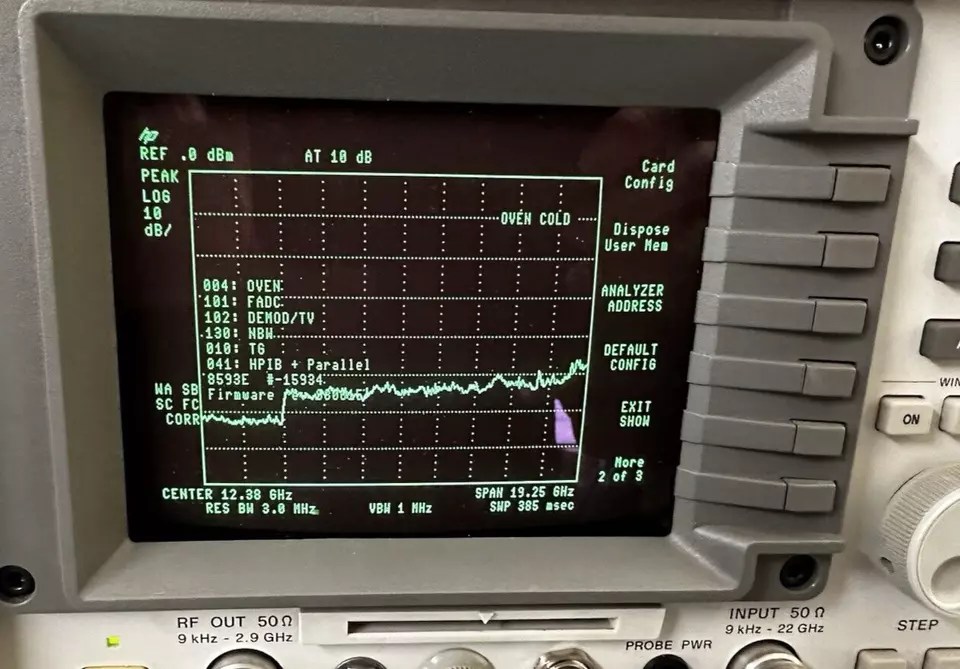

Options 004 010 101 102 130 041
004 = OCXO oven timebase

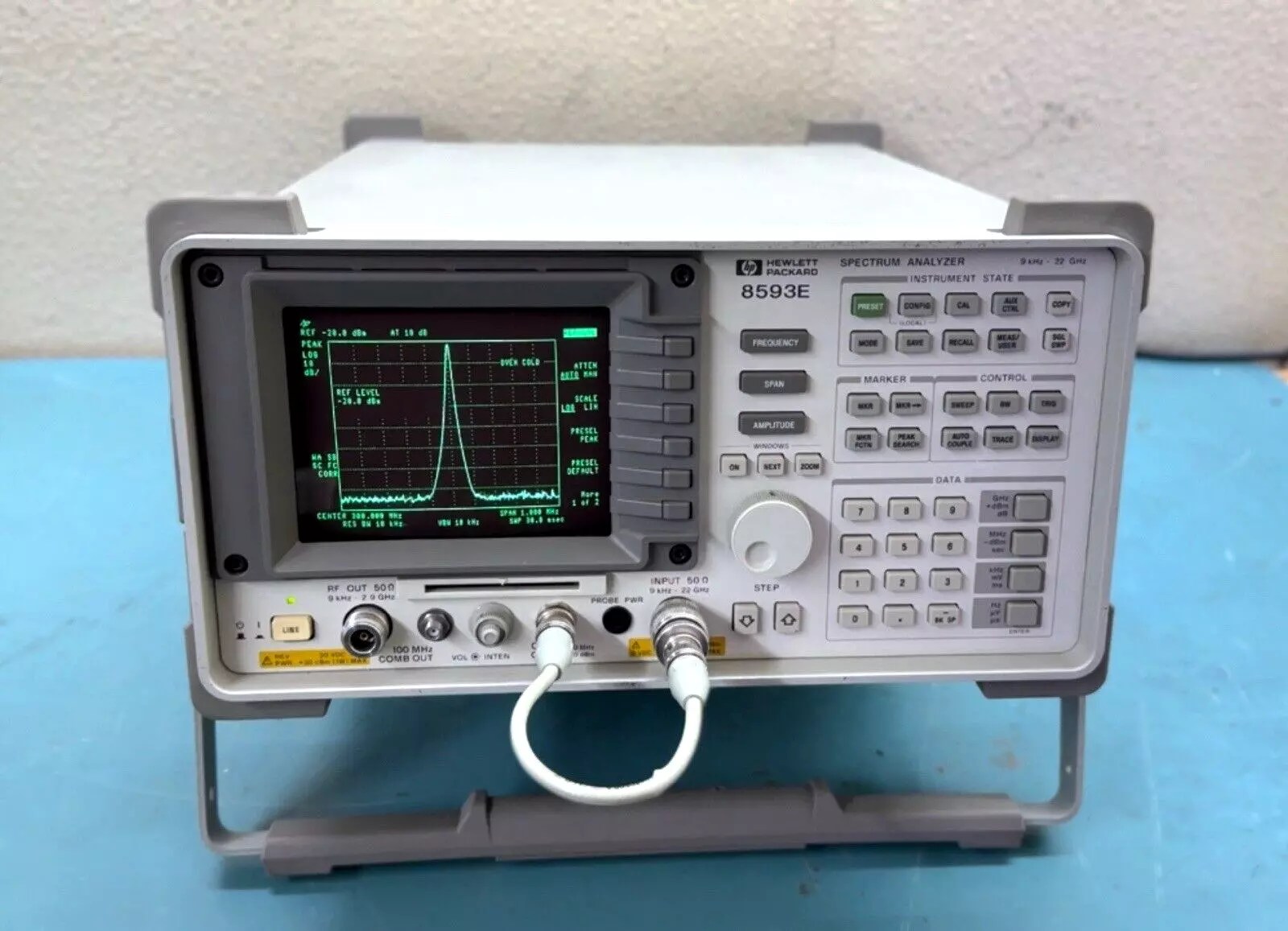

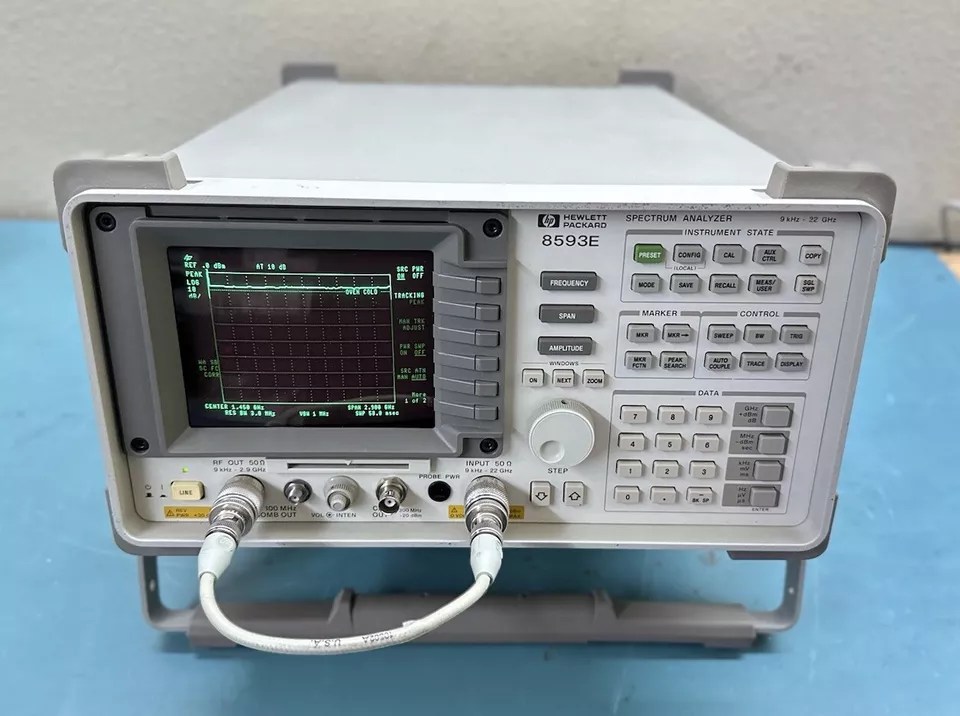

010 = Tracking Generator (9 kHz to 2.9 GHz)
101 = FADS Fast Time-Domain Sweeps and Analog + Display
102 = DEMOD/ TV, AM/FM Demodulator and TV Sync Trigger (TV Sync requires Option 101)
130 = NBW Narrow Resolution Bandwidths (30 to 300 Hz and 200 Hz EMI)

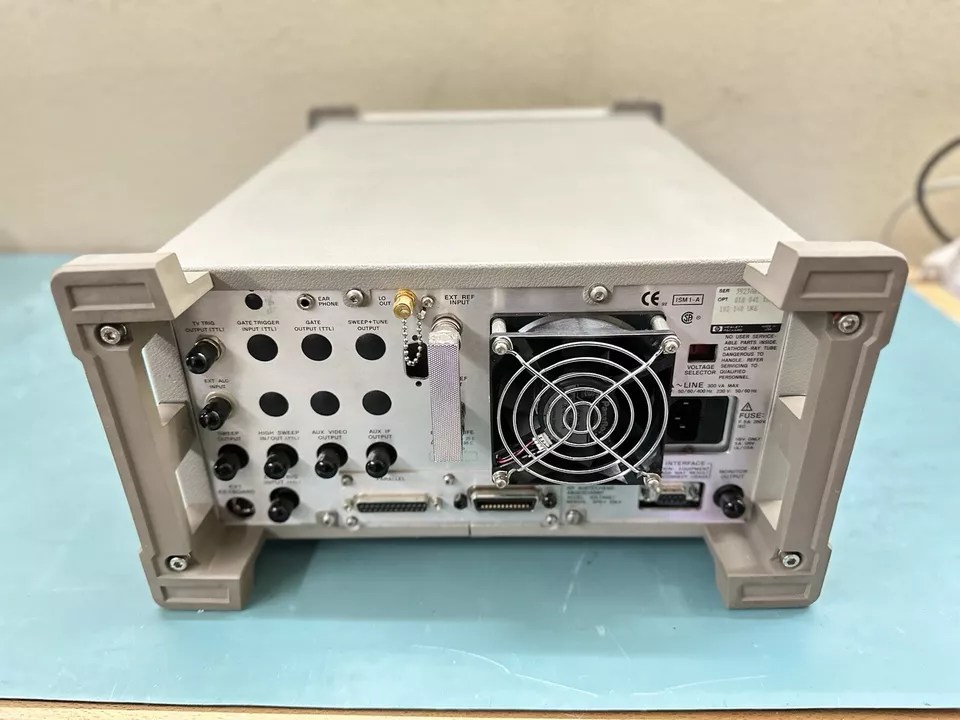

041 = GPIB/ HPIB / Parallel Interfaces
Agilent/HP 8593E is a member of the Keysight (Agilent/HP) 8590 E-Series spectrum analyzers, which offer a wide range of performance features and prices designed to fit your budget. Choose from low-cost basic performance analyzers or from higher-performance models. Whatever your choice you will find Keysight (Agilent/HP) 8590 series spectrum analyzers easy to use and reliable. Their expandable feature sets allow them to be easily configured to meet your growing measurement needs.
Application measurement personalities customize the analyzer for tasks such as cable TV, EMC, digital cellular radio, RF communication, noise-figure and scalar network analysis measurements. You can also add a variety of printers plotters and other accessories.
You can change the test capabilities of these spectrum analyzers to fit specific measurement needs. A memory card reader enables you to load application measurement personalities. Complex measurement routines are reduced to a keystroke. An option cardcage unique to the
HP 8590 E-series allows you to add circuit-card options for additional capability. Optional built-in tracking generators provide a synchronously swept signal source for stimulus-response measurements. Operating any 8590 series spectrum analyzer requires only minimal training.

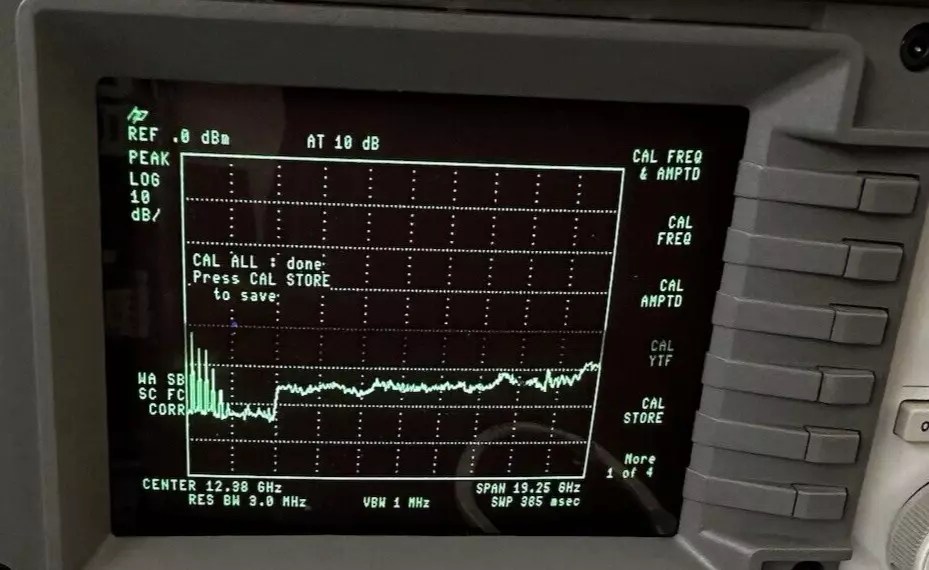

Numerous features make it easier to control measurements and to analyze the results. These spectrum analyzers have built-in automatic calibration to ensure measurement consistency. Frequency panning lets you quickly reposition signals without repeated sweeps. The internal memory allows over 50 traces to be stored and more can be stored on RAM cards using the memory-card reader. Time and date stamping come standard.
Direct output to printer or plotter is available with either the HPIB / parallel or the RS-232/ parallel interface option. Both Hewlett-Packard and selected Epson printers are supported.
The new Keysight (Agilent/HP) BenchLink Spectrum Analyzer PC software provides an easy-to-use communications link between your PC and the Keysight (Agilent/HP) 8590 Series spectrum analyzers. Taking full advantage of the Windows interface you can easily transfer screen images or trace data via HP-IB or RS-232 interfaces, thereby making it easy to capture, analyze and document measurement results in a PC environment.
These portable spectrum analyzers bring powerful comprehensive measurement capabilities to R F microwave and digital applications.
Performance specifications include low phase noise of 105 dBc at 30 kHz offset and frequency-synthesized accuracy of 2.1kHz at 1GHz, which can be improved to 210 Hz with an optional precision frequency reference. Second- and third-order dynamic ranges are 77 and 90 dB respectively. Calibrated amplitude range is + 30 to 130 dBm with Option 130 and calibrated onscreen display range is 70dB . Narrow resolution bandwidths of 30, 100, 200 EMI and 300 Hz are available on an optional circuit card which can be added to these analyzers at any time.
A window capability divides the display into two horizontal areas allowing you to zoom in on critical areas of a measurement trace or to display test data and the trace simultaneously. Many one-button measurements are standard including a marker table FF,T N dB bandwidths, third-order intercept, percent AM, and adjacent-channel power. A built-in memory card reader allows you to load measurement personalities your own custom programs and measurement data.
