Description

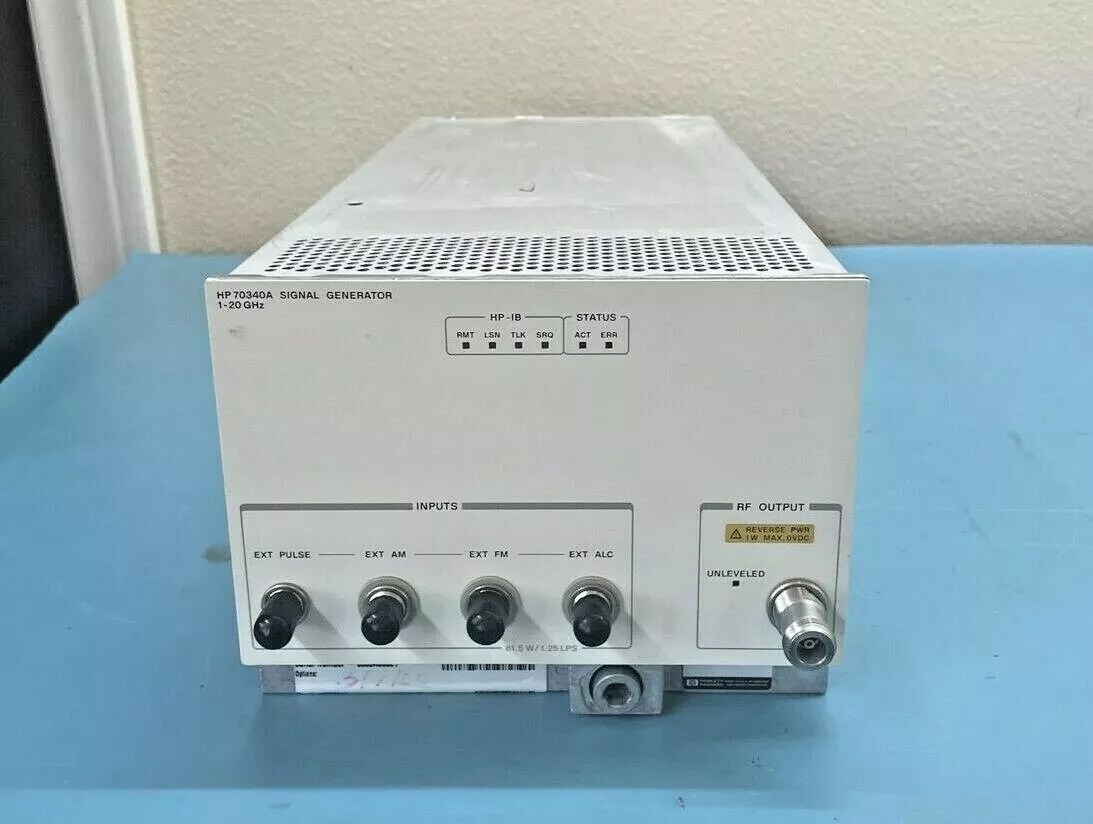

HP 70340A Signal Generator
1-20 GHz
+13 dBm power output
4-slot MMS module
<-55 dBc harmonics, <-60 dBc spurious
User level correction at remote test ports
1-20 GHz frequency range, extends to 10 MHz with the 70341A
Calibrated with certificate
Guaranteed working condition
we have the mainframe 70004A in stock as well
The HP 70340A Synthesized Signal Generator for 70000 Modular Measurement System (MMS), 4/8-width module delivers superior signal purity. Harmonics are suppressed above 55 dBc while other spurious signals are reduced below -60 dBc. Subharmonic signals are completely eliminated. Excellent output power accuracy (2 dB) and flatness (0.5 dB) are maintained across the entire> 100 dB dynamic range and the full frequency range of the HP 70340A, even at temperature extremes. The HP 70340A combines superior internal level accuracy and flatness with the flexibility of User Level Correction. This feature allows you to calibrate and program the signal generator output for automatic leveled power at distant test ports. Four level correction tables can be stored in memory for quick access as the system is reconfigured for different DUTs or test scenarios
