Description

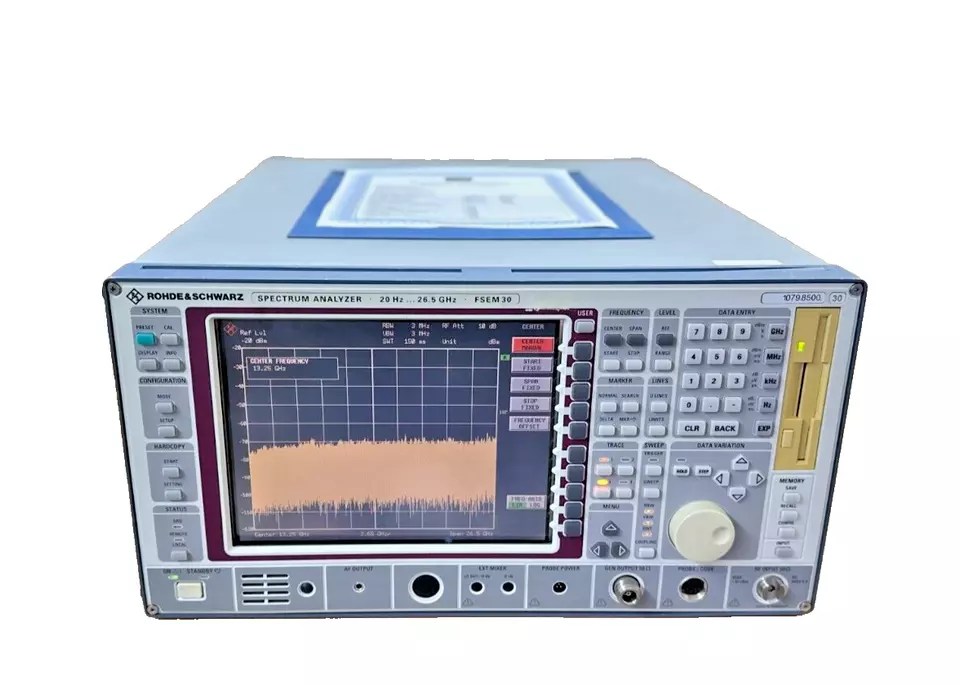

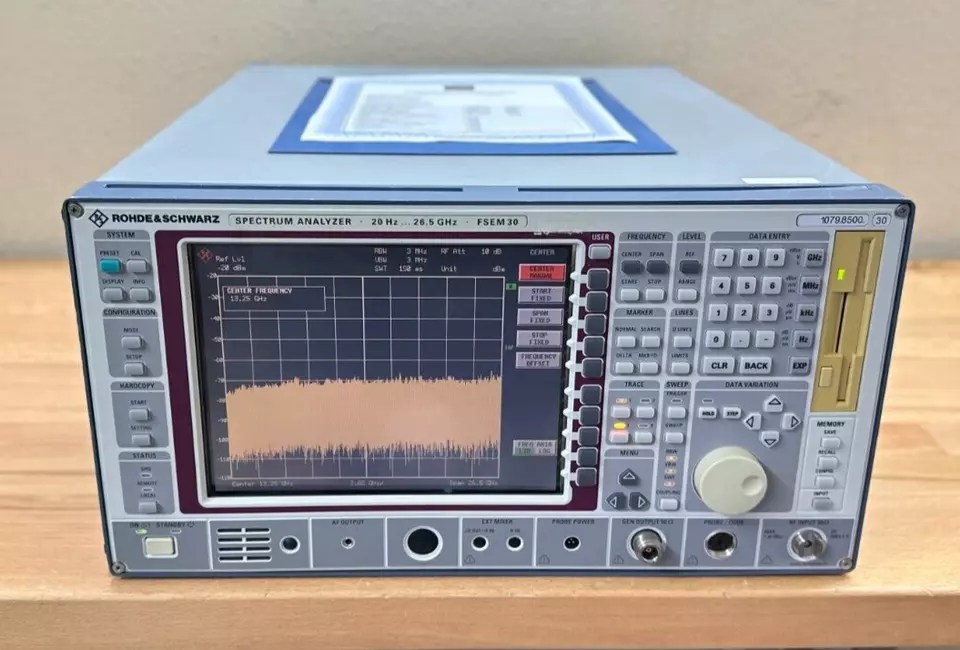

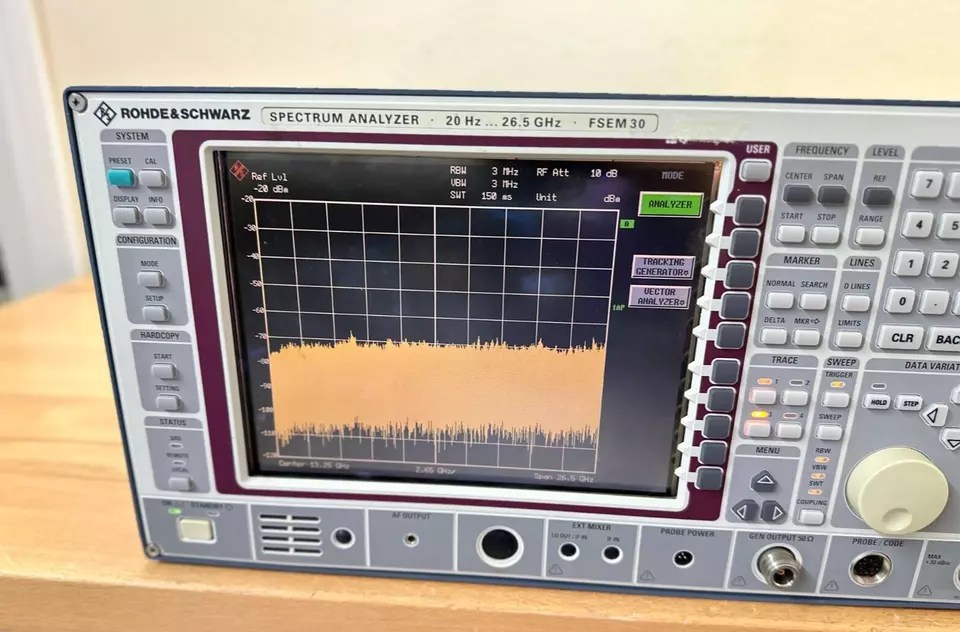

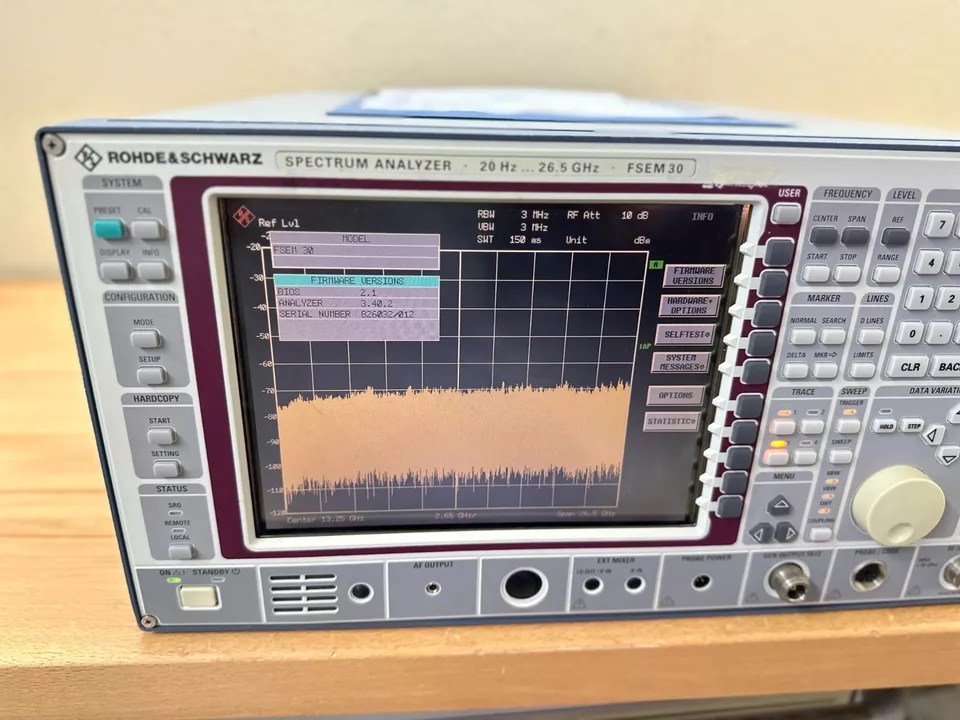

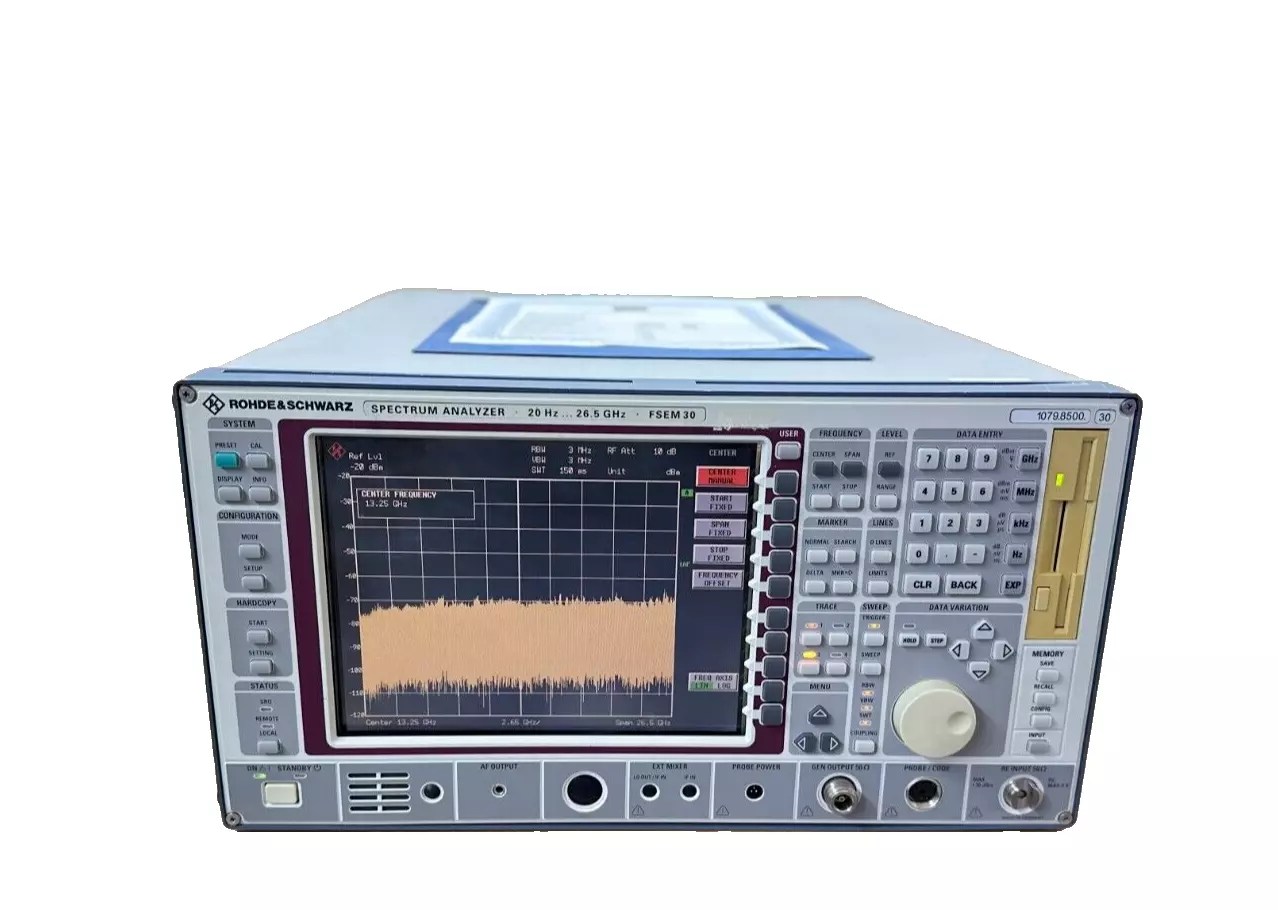

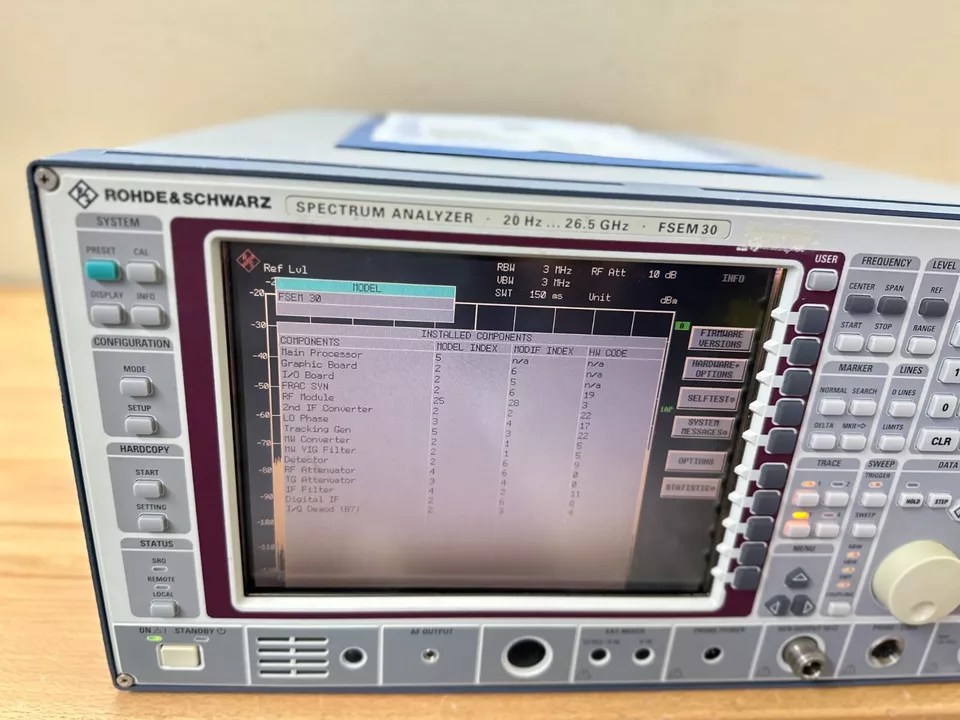

Rohde & Schwarz FSEM30
20 Hz – 26.5 GHz Spectrum Analyzer
Fresh NIST Traceable calibration with certificate
Loaded with options!
B4 Low Phase Noise
B5 FFT–Bandwidth 1Hz – 1 kHz
B7 Vector Signal Analyzer

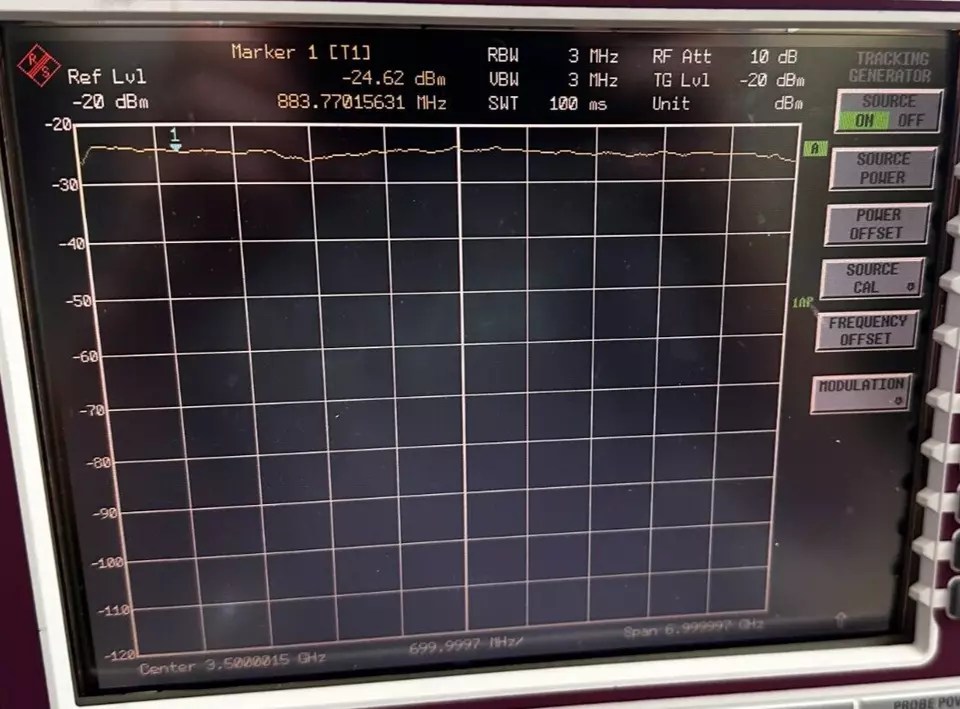

B11 Tracking Generator 7 GHz with I/Q Modulator
B12 Switchable Attenuator for Tracking Generator
B15 Controller
B17 2nd IEC/IEEE-Bus Interface
B22 Increased Level Accuracy up to 2 GHz
K10 GSM Application Firmware
The FSE spectrum analyzers from Rohde & Schwarz have been optimized both for general-purpose measurements and meeting the stringent requirements of testing advanced digital communication systems. High measurement speed, future-proof modular design and excellent characteristics put the analyzers right at the top of today’s market – at an attractive price.
Resolution bandwidths 1 Hz to 10 MHz, adjustable in steps of 1/2/3/5/10
Displayed noise floor -150 dBm (typ.) in 10-Hz bandwidth
3rd-order intercept point +20 dBm typ.
1 dB compression point of RF input +10 dBm
Phase noise at 10 kHz from carrier: -123 dBc (Hz) (typ.) (FSEA 30)
Total level measurement uncertainty up to 1 GHz <1 dB, up to 7 GHz 1.5 dB
AM/FM audio demodulator (with built-in loudspeaker and headphones connector)
Internal RF trigger (trigger threshold approx. -20 dBm)
5 ms full-span sweep time with fully synchronized sweep (FSEA, FSEB), 150 ms with FSEM, 230 ms with FSEK
1 µs zero-span sweep time
Pre-trigger and trigger delay
Gated sweep
FSEM 1079.8500.30
test-port adapters not included
3.5 mm female (1021.0512.00) and N female
(1021.0535.00)
Local pickup available
Monthly rentals available
