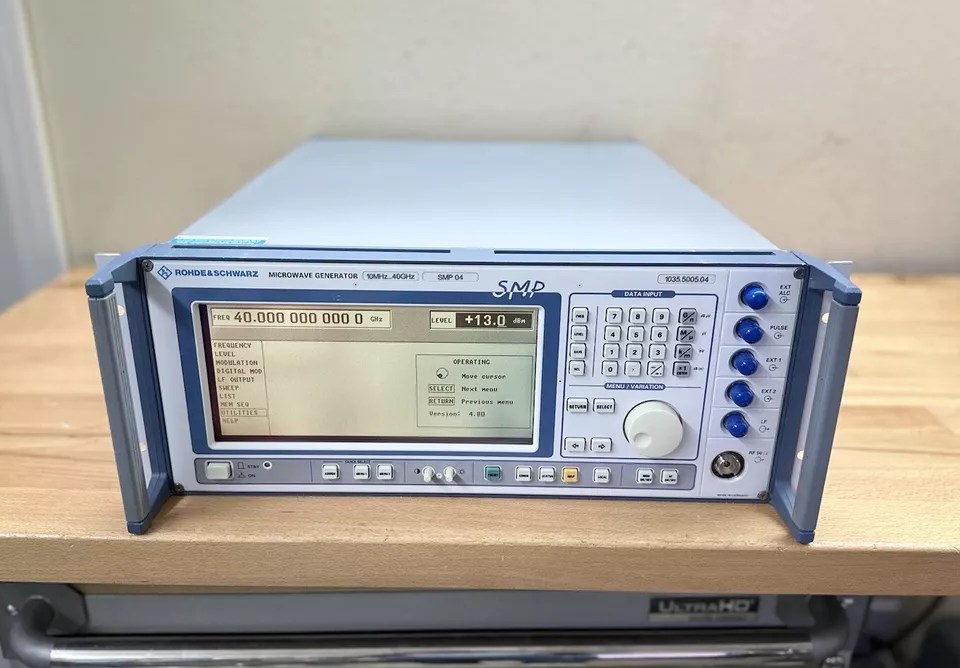

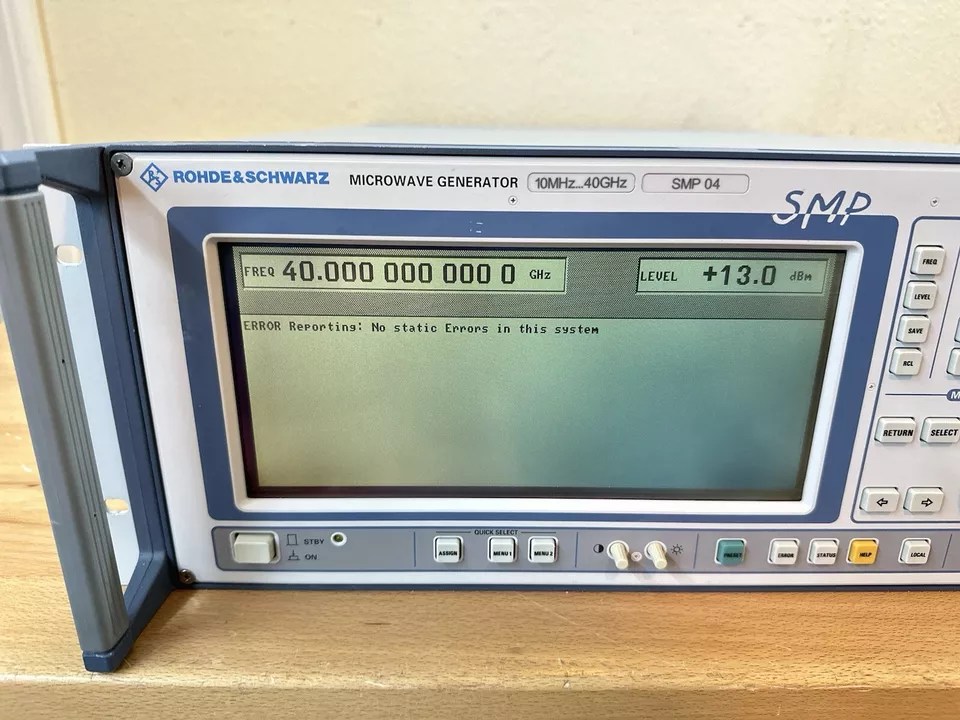

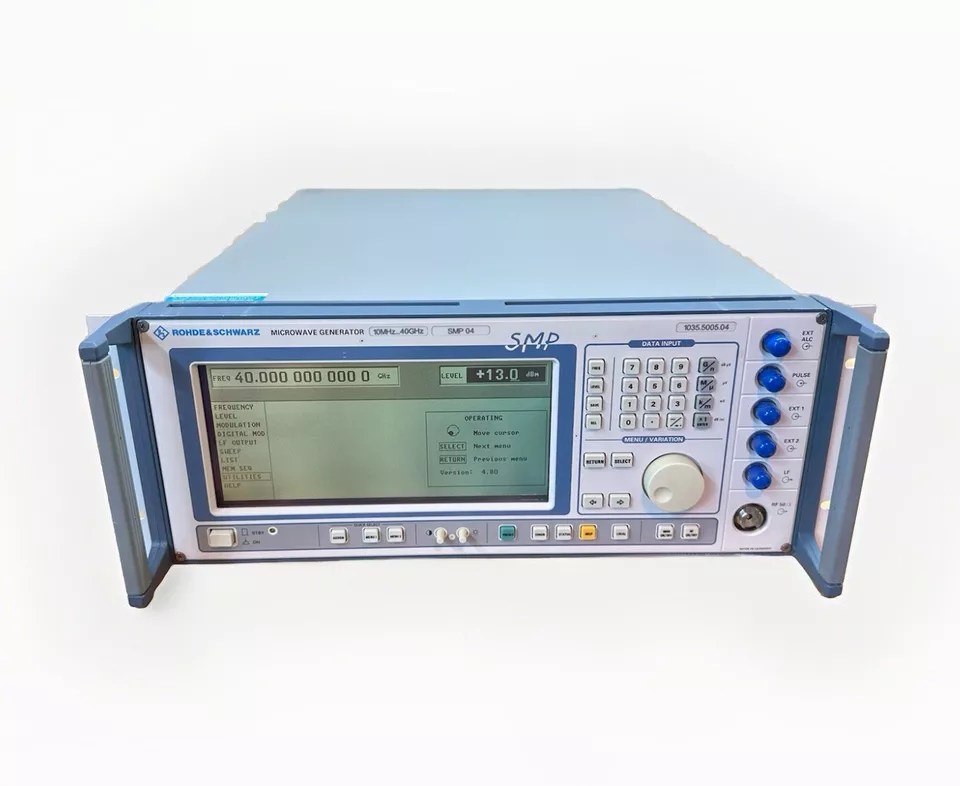

Rohde & Schwarz SMP04 10 MHz – 40 GHz Signal Generator
This unit has some intermittent issues and requires repair
Sold as is
YFOM cal does not pass
frequency measures 150 MHz off @ 1GHz 500 MHz low @ 40 GHz
SMP-B1 =OCXO Reference Oscillator
SMP-B11 = Frequency Extension 0.01 GHz to 2 GHz
SMP-B17 =RF Attenuator
◆ Extremely low SSB phase noise at
10 GHz (<–105 dBc (1 Hz) at 10 kHz
from carrier)
◆ Very short frequency setting time
<11 ms + 5 ms/GHz
◆ Extremely high level accuracy
<±0.9 dB at 0 dBm in frequency
range 10 MHz to 40 GHz
The ¸SMP is ideal for the following
applications:
◆ Substitution of local oscillators
◆ Measurements on nonlinear components such as frequency multipliers or
high-level mixers
◆ Driving of travelling wave tubes
(TWTs) and other power stages
◆ Interconnection of several signal
generators for intermodulation
measurements
◆ Tracking generator for spectrum and
network analyzers
Pulse modulation
Ideal for radar receivers
All data specified for pulse modulation,
which is frequently used in the development, production and maintenance of
radar receivers, is valid throughout the
rated frequency range and also at the
important intermediate frequencies of
70 MHz and 140 MHz. The on/off ratio is
better than 80 dB, the rise/fall time
shorter than 10 ns. Pulse widths of less
than 20 ns are possible
Maximum level
10 MHz to <2 GHz >+12 dBm
2 GHz to <18 GHz >+8.5 dBm
18 GHz to 20 GHz >+4.5 dBm
>20 to 27/33 GHz >+10 dBm
>33 GHz to 40 GHz >+8 dBm
